Polar Maps in XMachina

-

 New version of XMachina: 1211210 LINK

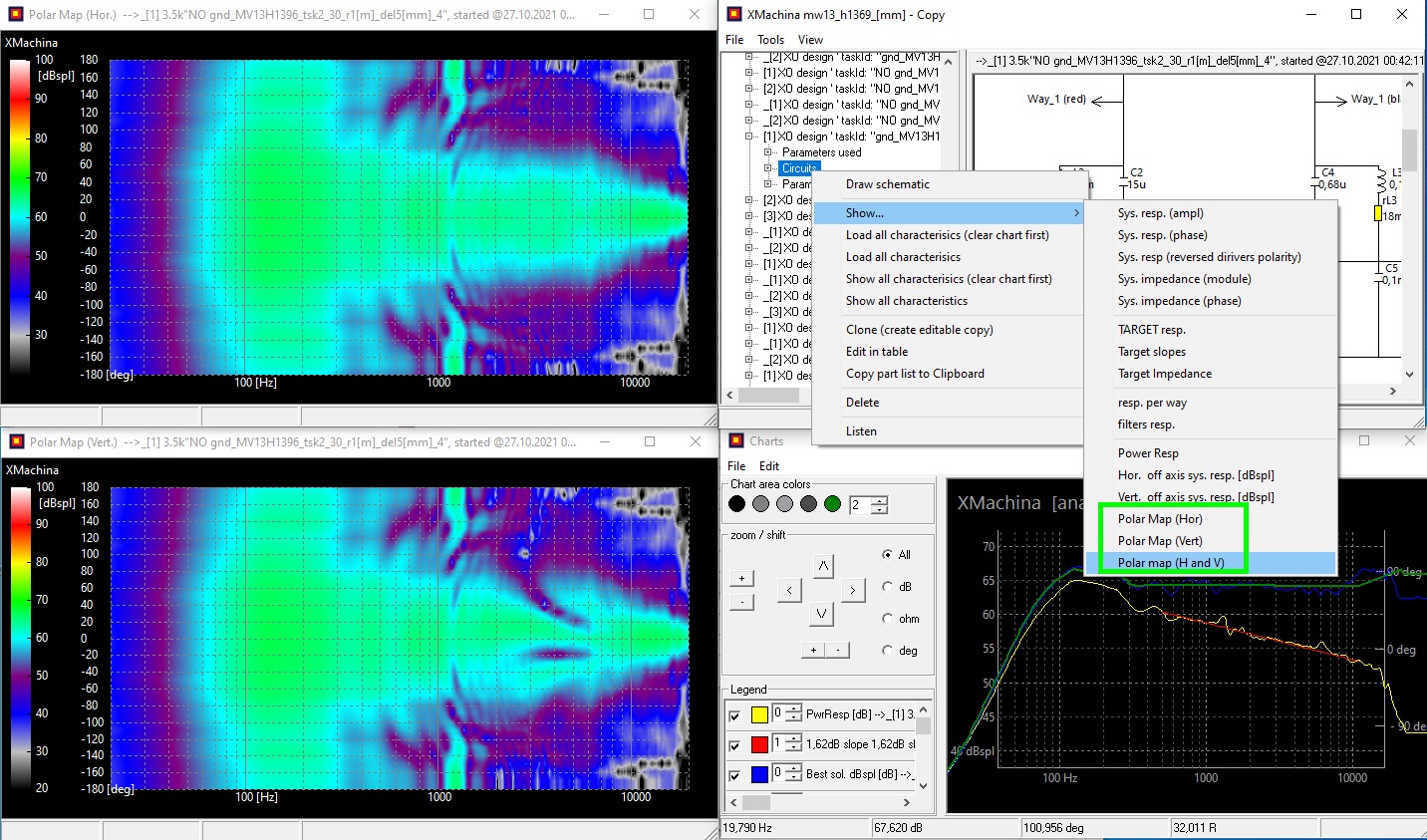

  • Polar maps introduction (horizontal and vertical planes). Available from the context menu of "Circuits" node, choose "Show...".



  • Component symbol modification (for coil and GND).
