New version of XMachina: 1210624

-

New version of XMachina: 1210624 LINK


  • Some data structures for axial measurements have been prepared. There is not much that can be done with it in the current version: the measurements can only be loaded and displayed (they are not used for design yet) .

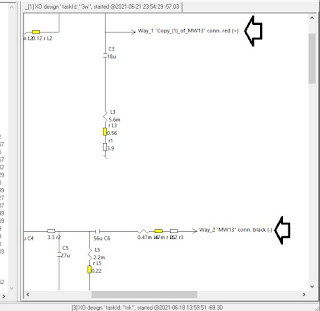

  • Bug fix: the application could't recognize potential profits from inverting speaker polarity and now it's corrected. Some drivers may appear in reverse polarity on the schematic:


    Polarity inverting can be allowed or forbidden depending on the checkbox state:


  • Some labels have been changed for for a clearer description.
  • Bug fix: Charts for curve digitization can be loaded from .bmp files (only pasting from the system clipboard worked so far, and it's still a preferred way as it doesn't depend on picture format).
  • Tab orders have been reorganized (left to right then top to bottom).
  • Existing points can be dragged to desired position during curve editing. The previous method of correcting points has been kept and it is the default method. For switching to "drag point" mode use the context menu:
